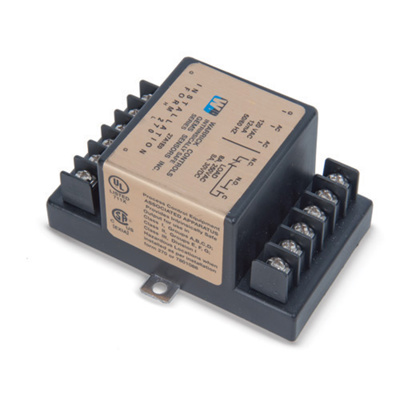

Warrick Intrinsically Safe Controller, 120VAC, 10kOhm Sensitivity, No Enclosure, 27A1E0

Item No.10305
Product Details Use for pressure vessels such as hydropneumatic tanks Solid state reliability Conductivity controllers are ideal for hydropneumatic pump control, as well as point-level service, valve control, differential service or alarms. These microprocessor-based controllers are available in two
Price $704.95
price per each
excl. tax
In Stock

Description

Product Details
  • Use for pressure vessels such as hydropneumatic tanks
  • Solid state reliability

Conductivity controllers are ideal for hydropneumatic pump control, as well as point-level service, valve control, differential service or alarms. These microprocessor-based controllers are available in two configurations.

Intrinsically safe controllers (Warrick 27 series) feature a one-piece design for mounting on flat surfaces. Units are UL intrinsically safe output rated for hazardous locations. Fixed 10 kO/cm sensitivity is suitable for clean/potable water applications.

All controllers are compatible with conductivity probes (sold separately). Differential service requires three probes: high, low and reference. Single-level service requires two probes: high and reference. In metallic tank applications, tank can act in place of a reference probe.

Tech Specs:
  • Output relay: one SPDT, 8A @ 120/240 VAC
  • Supply power: 120 VAC, 50/60 Hz
  • Operating temp: ­40 to 150°F
  • Terminals: screw type with pressure clamps
  • Approvals: mUL approved for use in Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III hazardous locations

Product Information

Item number
10305
Brand Name
Gems Sensors
Catalog Page
886
Net weight
1
Condition
New
