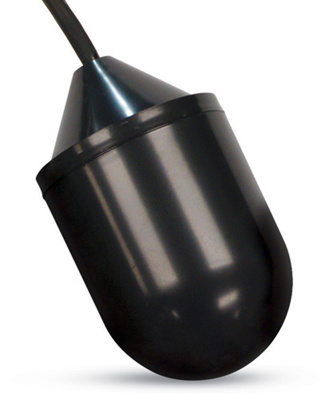

SJE Rhombus® HiTempMaster™ NO Float Switch w/o Plug, 10' Cable
Description
- Mechanically activated snap-action contacts—no mercury
- Specifically designed to handle process temperatures up to 200°F
Use these pump-duty wide-angle float switches for high-temperature sump applications up to 200°F. Their corrosion-resistant float housing with innovative twin-wall design protects internal components from heat and moisture. Switches are not sensitive to rotation or turbulence, eliminating false switching due to choppy conditions. All switches are normally open (NO) for pump down applications.
CSA certified.

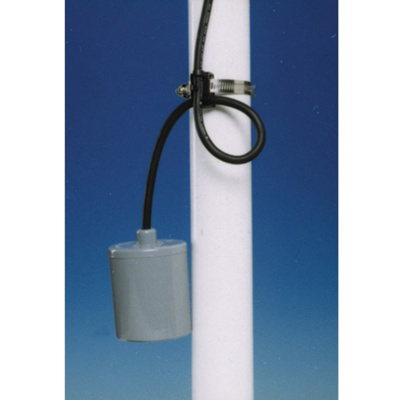

Includes: pipe mounting clamp.
- Cable: 10'L w/ Bare Wires (No Plug); flexible 16 AWG, 2-conductor SJOOW, water-resistant CPE sheath
- Electrical rating: 13A @ 115/230 VAC, 50/60 Hz
- Actuation angle: approximately 45° above and 45° below horizontal
- Switch element: SPST mechanical, snap action; Float material: polypropylene
- Operating conditions: 200°F max; Dimensions: 3.18"Dia x 5.58"L
Product Information
- Item number
- 13043
- Brand Name
- SJE Rhombus
- Catalog Page
- 835
- Net weight
- 1.6
- Condition
- New
SJE Rhombus® HiTempMaster™ NO Float Switch w/o Plug, 10' Cable
- Item number
- 13043
- Brand Name
- SJE Rhombus
- Catalog Page
- 835
- Net weight
- 1.6
- Condition
- New
- Mechanically activated snap-action contacts—no mercury
- Specifically designed to handle process temperatures up to 200°F
Use these pump-duty wide-angle float switches for high-temperature sump applications up to 200°F. Their corrosion-resistant float housing with innovative twin-wall design protects internal components from heat and moisture. Switches are not sensitive to rotation or turbulence, eliminating false switching due to choppy conditions. All switches are normally open (NO) for pump down applications.
CSA certified.
Includes: pipe mounting clamp.
- Cable: 10'L w/ Bare Wires (No Plug); flexible 16 AWG, 2-conductor SJOOW, water-resistant CPE sheath
- Electrical rating: 13A @ 115/230 VAC, 50/60 Hz
- Actuation angle: approximately 45° above and 45° below horizontal
- Switch element: SPST mechanical, snap action; Float material: polypropylene
- Operating conditions: 200°F max; Dimensions: 3.18"Dia x 5.58"L
