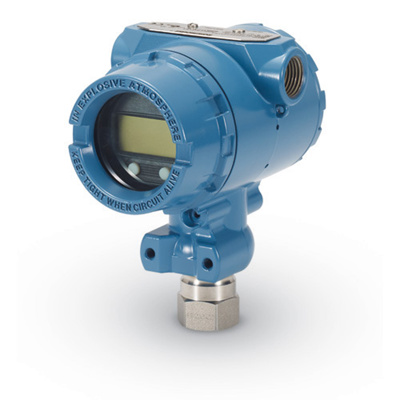

2088 Gauge Pressure Transmitter 0 to 150 psi, with LOI Display, 2088G2S22A1M4
Description
- 50:1 turndown ratio gives flexibility for wide measuring changes
- Standard accuracy rating ±0.075% of calibrated span
Designed with long-term performance and maintainability in mind! The reliable performance for which Rosemount's transmitters are famous, coupled with Smart capabilities, make 2088 transmitters exceptional values. The 2088 uses a solid-state polysilicon pressure sensor with a 316L isolating diaphragm. The low oil fill of this design has very little temperature effect and outstanding accuracy. Operates in temperatures -4 to 175°F.
Features LOI (local operator interface) display. LOI units feature pushbuttons for easy field configuration and a LCD that displays pressure and diagnostic information.
- Stability: ±0.10% of URL for 3 years
- Output: 4-20 mA with HART® Protocol
- Process connection: 1/2" NPT(F)
- Power: 10.5 to 36 VDC
- Housing: aluminum, polyurethane painted, NEMA 4X
Product Information
- Item number
- 10240
- Brand Name
- Emerson/Rosemount
- Catalog Page
- 867
- Net weight
- 5
- Condition
- New
