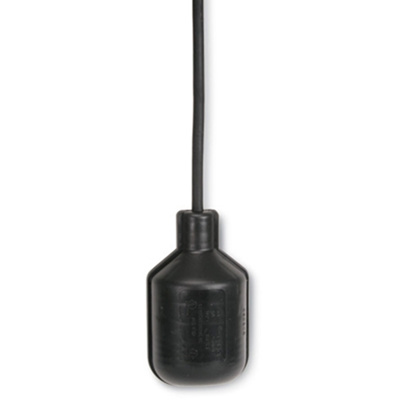

SJE MilliAmpMaster WPS Low-Current Float Switch, NO/NC, 30'L Cable, 1062687, 30MANWPSPC

Item No.30259
Product Details Certified to meet NSF/ANSI 61 for use in potable water SPDT configuration can be wired as normally open or normally closed Pipe-mount design (clamp included) These mechanically activated, narrow angle control switches are SPDT (single pole double throw) with a 3-wire cable— wir
Price $93.95
price per each
excl. tax
Call for availability

Description

Product Details
  • Certified to meet NSF/ANSI 61 for use in potable water
  • SPDT configuration can be wired as normally open or normally closed
  • Pipe-mount design (clamp included)

These mechanically activated, narrow angle control switches are SPDT (single pole double throw) with a 3-wire cable— wire as normally open or normally closed depending on your application.

Gold cross-point mercury-free switch contacts provide reliable low current operation. Suitable for use in low current AC or DC potable water applications.

Includes: clamp for pipe mounting.

Tech Specs:
  • Type: low current, signal duty, narrow angle
  • Electrical rating: 1A max/0.160 mA min @ 125 VAC, 0.1A max/0.160 mA min @ 30 VDC
  • Range: 1.5" above and below horizontal
  • Switch element: SPDT mechanical snap-action
  • Float material: polypropylene housing
  • Cable: 16-gauge, 3-conductor (15-ft length)
  • Dimensions: 4.83"H x 2.74" Dia
  • Approvals: CSA, NSF 61

Product Information

Item number
30259
Brand Name
SJE Rhombus
Catalog Page
836
Net weight
1
Condition
New

SJE MilliAmpMaster WPS Low-Current Float Switch, NO/NC, 30'L Cable, 1062687, 30MANWPSPC

Item number
30259
Brand Name
SJE Rhombus
Catalog Page
836
Net weight
1
Condition
New
Price $93.95
price per each
excl. tax
Call for availability
each
Need Help? Call 800-548-1234
Product Details
  • Certified to meet NSF/ANSI 61 for use in potable water
  • SPDT configuration can be wired as normally open or normally closed
  • Pipe-mount design (clamp included)

These mechanically activated, narrow angle control switches are SPDT (single pole double throw) with a 3-wire cable— wire as normally open or normally closed depending on your application.

Gold cross-point mercury-free switch contacts provide reliable low current operation. Suitable for use in low current AC or DC potable water applications.

Includes: clamp for pipe mounting.

Tech Specs:
  • Type: low current, signal duty, narrow angle
  • Electrical rating: 1A max/0.160 mA min @ 125 VAC, 0.1A max/0.160 mA min @ 30 VDC
  • Range: 1.5" above and below horizontal
  • Switch element: SPDT mechanical snap-action
  • Float material: polypropylene housing
  • Cable: 16-gauge, 3-conductor (15-ft length)
  • Dimensions: 4.83"H x 2.74" Dia
  • Approvals: CSA, NSF 61
