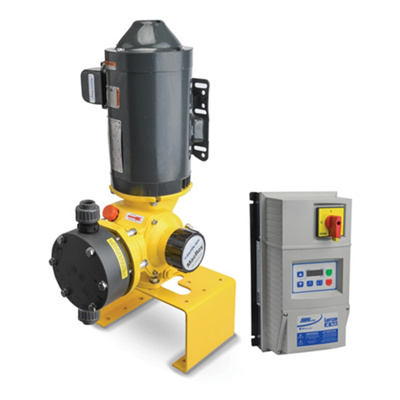

Milton Roy Series D MacRoy® Metering Pump, 1200 GPD, 100 PSI, D73V8PM4N1N
Description
- Widely used for chemical dosing in water and wastewater applications
- Automatic control models accept a 4-20 mA input control
MacRoy mechanically-actuated diaphragm pumps are a cost-effective solution for chemical dosing. These durable pumps run smoothly, thanks to their low-friction bronze gears and robust worm gear drive. Their lockable micrometer prevents drifting.
Automatic control models have an inverter duty AC motor and drive. These models accept a 4-20 mA process signal and feature an integrated disconnect.
Use with: sodium hypochlorite, caustic, polyphosphate, potassium permanganate, sodium bisulfite and bisulfate, ferric and soda ash (call for compatibility with other chemicals). Wetted materials: PVC head, Teflon® diaphragm and O-rings, and ceramic check balls.
Note: Foot valve, injection quill and piping are not included. We recommend installing a back pressure valve, pressure relief valve and a pulsation dampener for maximum system efficiency.
Shipping: Additional shipping fees apply. Contact USABlueBook for more information.
- Suction lift: 8.2'
- Metering accuracy: ±1%
- Turndown ratio: 100:1
- Power: AC drive: NEMA 4X enclosure, integrated disconnect, input power 115V/1ph, 240V/1ph
- Connection: 1/2" NPT(F)
Product Information
- Item number
- 10613
- Brand Name
- Milton Roy
- Catalog Page
- 155
- Net weight
- 60
- Condition
- New
