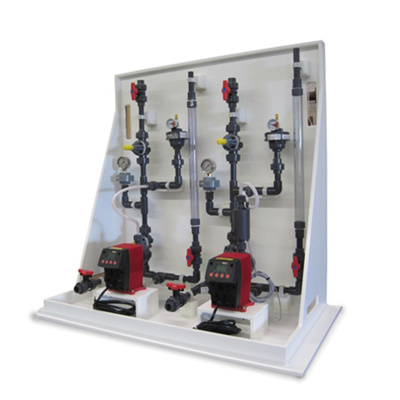

Jesco Double-Pump Skid System w/ MAGDOS LA Pumps, 12 GPD, 232 PSI, PVDF/Viton®/PTFE
Description
- 4-20 mA input capabilities on all pumps
- Double-pump systems let you pump multiple chemicals at the same time
Jesco chemical feed skid systems come pre-plumbed, so they're easy to install and operate. Just provide a 115-VAC power source, and connect the suction and discharge ends. The MAGDOS LA solenoid-driven diaphragm pumps can be controlled manually or externally via a 4-20 mA signal. All skids are hydro-tested and calibrated before leaving the factory.
Use with sodium permanganate and 93% sulfuric acid (call for compatibility with other chemicals). Materials: PVC/Viton/PTFE.
Includes: chemical-resistant base, suction strainer(s), calibration column(s), discharge pulsation dampener(s), pressure gauge(s), pressure relief valve(s), back pressure/antisiphon valve(s) and isolation valves. Discharge tubing and fittings are not included (order separately).
Note: Systems are configured for flooded suction only. Alternate voltages available. Contact USABlueBook for more information.
Shipping: Ships motor freight.
Product Information
- Item number
- 350006
- Brand Name
- Jesco America Corp
- Net weight
- 220
Jesco Double-Pump Skid System w/ MAGDOS LA Pumps, 12 GPD, 232 PSI, PVDF/Viton®/PTFE
- Item number
- 350006
- Brand Name
- Jesco America Corp
- Net weight
- 220
- 4-20 mA input capabilities on all pumps
- Double-pump systems let you pump multiple chemicals at the same time
Jesco chemical feed skid systems come pre-plumbed, so they're easy to install and operate. Just provide a 115-VAC power source, and connect the suction and discharge ends. The MAGDOS LA solenoid-driven diaphragm pumps can be controlled manually or externally via a 4-20 mA signal. All skids are hydro-tested and calibrated before leaving the factory.
Use with sodium permanganate and 93% sulfuric acid (call for compatibility with other chemicals). Materials: PVC/Viton/PTFE.
Includes: chemical-resistant base, suction strainer(s), calibration column(s), discharge pulsation dampener(s), pressure gauge(s), pressure relief valve(s), back pressure/antisiphon valve(s) and isolation valves. Discharge tubing and fittings are not included (order separately).
Note: Systems are configured for flooded suction only. Alternate voltages available. Contact USABlueBook for more information.
Shipping: Ships motor freight.
