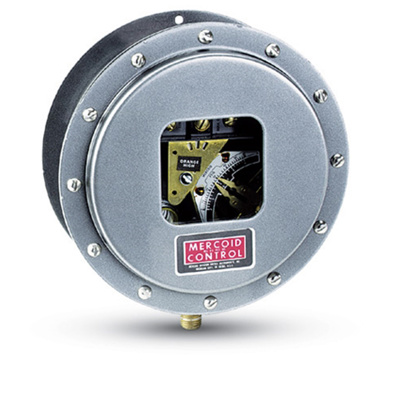

Mercoid® Snap-Action Pressure Switch, SS, 10-200 psig, Weatherproof

Item No.10558
Product Details Easy to adjust, visible set points Can be used for level control More accurate and repeatable than other pressure switches The Mercoid DA series bourdon tube pressure switches combine high sensitivity and repeatability with easily adjustable set points via two external thumb wheels.
Price $1499
price per each
excl. tax
In Stock

Description

Product Details
  • Easy to adjust, visible set points
  • Can be used for level control
  • More accurate and repeatable than other pressure switches

The Mercoid DA series bourdon tube pressure switches combine high sensitivity and repeatability with easily adjustable set points via two external thumb wheels. The accuracy and narrow dead bands make these switches suitable for many types of precise pressure control, including level control applications.

Features weather-resistant enclosure with non-mercury, high-current snap-action contacts in stainless steel construction. Suitable for potable water applications. Also includes SPDT contacts with an adjustable dead band. The minimum dead band may be set to anywhere within the range.

Call us for pressure ranges and other versions such as very narrow dead band models that are not listed here.

Note: A pressure snubber or pulsation damper is recommended.

Tech Specs:
  • Range: 10 to 200 psig
  • Minimum Deadband: 22.5 psi

Product Information

Item number
10558
Brand Name
Dwyer Instruments
Catalog Page
883
Net weight
5
Condition
New

Mercoid® Snap-Action Pressure Switch, SS, 10-200 psig, Weatherproof

Item number
10558
Brand Name
Dwyer Instruments
Catalog Page
883
Net weight
5
Condition
New
Price $1499
price per each
excl. tax
In Stock
each
Need Help? Call 800-548-1234
Product Details
  • Easy to adjust, visible set points
  • Can be used for level control
  • More accurate and repeatable than other pressure switches

The Mercoid DA series bourdon tube pressure switches combine high sensitivity and repeatability with easily adjustable set points via two external thumb wheels. The accuracy and narrow dead bands make these switches suitable for many types of precise pressure control, including level control applications.

Features weather-resistant enclosure with non-mercury, high-current snap-action contacts in stainless steel construction. Suitable for potable water applications. Also includes SPDT contacts with an adjustable dead band. The minimum dead band may be set to anywhere within the range.

Call us for pressure ranges and other versions such as very narrow dead band models that are not listed here.

Note: A pressure snubber or pulsation damper is recommended.

Tech Specs:
  • Range: 10 to 200 psig
  • Minimum Deadband: 22.5 psi
