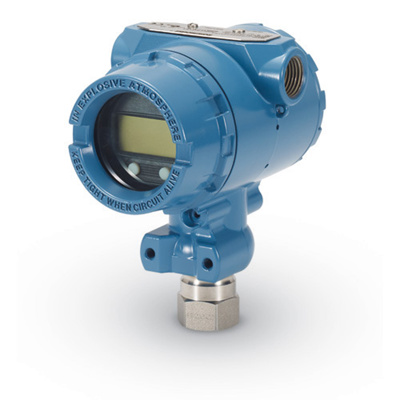

2088 Gauge Pressure Transmitter 0 to 30 psi, with LOI Display, 2088G1S22A1M4

Item No.10239
Product Details 50:1 turndown ratio gives flexibility for wide measuring changes Standard accuracy rating ±0.075% of calibrated span Designed with long-term performance and maintainability in mind! The reliable performance for which Rosemount's transmitters are famous, coupled with Smart capa
Call for availability
Call for pricing & to order

Description

Product Details
  • 50:1 turndown ratio gives flexibility for wide measuring changes
  • Standard accuracy rating ±0.075% of calibrated span

Designed with long-term performance and maintainability in mind! The reliable performance for which Rosemount's transmitters are famous, coupled with Smart capabilities, make 2088 transmitters exceptional values. The 2088 uses a solid-state polysilicon pressure sensor with a 316L isolating diaphragm. The low oil fill of this design has very little temperature effect and outstanding accuracy. Operates in temperatures -4 to 175°F.

Features LOI (local operator interface) display. LOI units feature pushbuttons for easy field configuration and a LCD that displays pressure and diagnostic information.

Tech Specs:
  • Stability: ±0.10% of URL for 1 year
  • Output: 4-20 mA with HART® Protocol
  • Process connection: 1/2" NPT(F)
  • Power: 10.5 to 36 VDC
  • Housing: aluminum, polyurethane painted, NEMA 4X

Product Information

Item number
10239
Brand Name
Emerson/Rosemount
Catalog Page
867
Net weight
5
Condition
New

2088 Gauge Pressure Transmitter 0 to 30 psi, with LOI Display, 2088G1S22A1M4

Item number
10239
Brand Name
Emerson/Rosemount
Catalog Page
867
Net weight
5
Condition
New
Call for availability
Call for pricing & to order
Need Help? Call 800-548-1234
Product Details
  • 50:1 turndown ratio gives flexibility for wide measuring changes
  • Standard accuracy rating ±0.075% of calibrated span

Designed with long-term performance and maintainability in mind! The reliable performance for which Rosemount's transmitters are famous, coupled with Smart capabilities, make 2088 transmitters exceptional values. The 2088 uses a solid-state polysilicon pressure sensor with a 316L isolating diaphragm. The low oil fill of this design has very little temperature effect and outstanding accuracy. Operates in temperatures -4 to 175°F.

Features LOI (local operator interface) display. LOI units feature pushbuttons for easy field configuration and a LCD that displays pressure and diagnostic information.

Tech Specs:
  • Stability: ±0.10% of URL for 1 year
  • Output: 4-20 mA with HART® Protocol
  • Process connection: 1/2" NPT(F)
  • Power: 10.5 to 36 VDC
  • Housing: aluminum, polyurethane painted, NEMA 4X
