Signet Insertion Flow Sensor 2'' to 24'' Pipe Lines

Description
- Measure flow in dirty water applications containing solids
- Easily detect empty pipes
- Available for pipe sizes from 2 to 72"

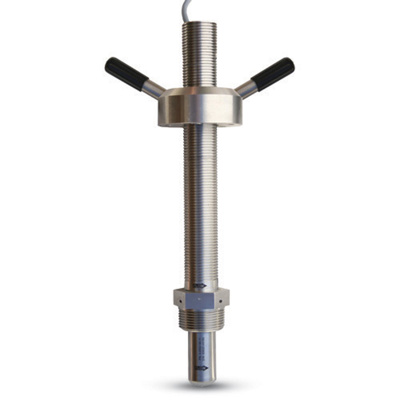

Use the Signet 2552 insertion mag sensor to measure flow in clean water applications or dirty water applications containing solids. This robust, stainless steel meter provides optimal durability and chemical resistance at an affordable price.
The Signet 2552 installs through any 1-1/4" or 1-1/2" NPT process connection, and provides a frequency or S3L output. The meter can also be installed through a ball valve, creating a hot-tap system where you can take the meter out of service for cleaning without shutting down your entire system. The unit's wide flow range of 0.26 to 33 ft/sec can be scaled to your specifications using the optional set-up tool (stock # 10749).
- Accuracy: plus or minus 2% of reading
- Flow velocity range: 0.15 to 33 ft/sec
- Output: frequency or S3L
- Materials, sensor: 316 SS
- Materials, electrode plate: PVDF
- Materials, electrodes: 316 SS
- Materials, housing: 316 SS
- Maximum pressure: 300 psi (at 77°F)
- Operating conditions: 5 to 185°F
- Power: 5 to 26.4 VDC
Product Information
- Item number
- 10747
- Brand Name
- GF Signet
- Net weight
- 5.8
- Condition
- New
