Solinst 101-M2 1000' P2 Probe Water Level Indicator/Tape

Item No.10858
Product Details Use for checking well, tank or pump station levels Reinforced flat tape accurate to 0.01 ft Accurate, reliable, and easy to operate. 3/8" wide tape features permanent, heat-impregnated markings, graduated in feet, tenths and 1/100's. Stranded non-stretch, corrosion-resistant SS condu
Price $1854
price per each
excl. tax
Call for availability

Description

Product Details
  • Use for checking well, tank or pump station levels
  • Reinforced flat tape accurate to 0.01 ft

Accurate, reliable, and easy to operate. 3/8" wide tape features permanent, heat-impregnated markings, graduated in feet, tenths and 1/100's. Stranded non-stretch, corrosion-resistant SS conductors embedded within the tape provide strength. 1/2"Dia x 7-1/2"L SS probe at the end of the tape incorporates an insulating gap between the electrodes.

When the probe makes contact with the water, the 9V circuit is completed, activating a buzzer and a light. The water level is determined by reading directly from the tape at the top of the well casing or borehole. Probes have recessed tips to minimize signals in cascading water.

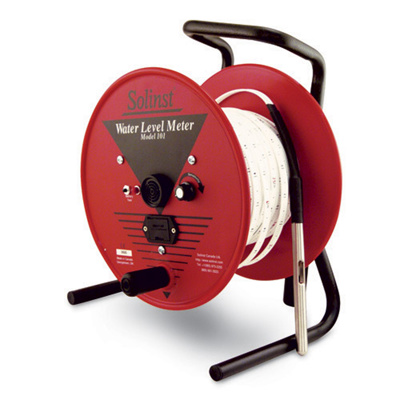

Reels are ergonomically designed, with a stand-alone design, carrying handle and an excellent brake. The standard 9V battery (included) is housed in a battery drawer, and each reel has a probe holder. Reels are equipped with an on/off sensitivity switch, light, buzzer and a battery test button. Tape guides provided with each reel protect the tape from damage on rough edges. Also provides reel support on the casing. Reel sizes vary depending on tape length provided: 100' to 400': small; 500' to 1000': medium.

Solinst water level meters are available in lengths up to 6000'. Options include a 110 VAC power reel, special probes for environment applications, cable splice kits and carrying cases.

Tech Specs:
  • Length: 1000'

Product Information

Item number
10858
Brand Name
Solinst
Catalog Page
890
Net weight
21
Condition
New

Documents

Solinst 101-M2 1000' P2 Probe Water Level Indicator/Tape

Item number
10858
Brand Name
Solinst
Catalog Page
890
Net weight
21
Condition
New
Price $1854
price per each
excl. tax
Call for availability
each
Need Help? Call 800-548-1234
Product Details
  • Use for checking well, tank or pump station levels
  • Reinforced flat tape accurate to 0.01 ft

Accurate, reliable, and easy to operate. 3/8" wide tape features permanent, heat-impregnated markings, graduated in feet, tenths and 1/100's. Stranded non-stretch, corrosion-resistant SS conductors embedded within the tape provide strength. 1/2"Dia x 7-1/2"L SS probe at the end of the tape incorporates an insulating gap between the electrodes.

When the probe makes contact with the water, the 9V circuit is completed, activating a buzzer and a light. The water level is determined by reading directly from the tape at the top of the well casing or borehole. Probes have recessed tips to minimize signals in cascading water.

Reels are ergonomically designed, with a stand-alone design, carrying handle and an excellent brake. The standard 9V battery (included) is housed in a battery drawer, and each reel has a probe holder. Reels are equipped with an on/off sensitivity switch, light, buzzer and a battery test button. Tape guides provided with each reel protect the tape from damage on rough edges. Also provides reel support on the casing. Reel sizes vary depending on tape length provided: 100' to 400': small; 500' to 1000': medium.

Solinst water level meters are available in lengths up to 6000'. Options include a 110 VAC power reel, special probes for environment applications, cable splice kits and carrying cases.

Tech Specs:
  • Length: 1000'
