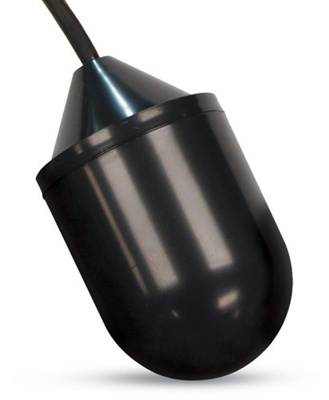

SJE Rhombus® HiTempMaster™ NO Float Switch w/ 240V Piggyback Plug, 30' Cable

Item No.13048
Product Details Mechanically activated snap-action contacts—no mercury Specifically designed to handle process temperatures up to 200°F Features piggyback plugs Use these pump-duty wide-angle float switches for high-temperature sump applications up to 200°F. Their corrosion-resistant f
Price $140.95
price per each
excl. tax
Call for availability

Description

Product Details
  • Mechanically activated snap-action contacts—no mercury
  • Specifically designed to handle process temperatures up to 200°F
  • Features piggyback plugs

Use these pump-duty wide-angle float switches for high-temperature sump applications up to 200°F. Their corrosion-resistant float housing with innovative twin-wall design protects internal components from heat and moisture. Switches are not sensitive to rotation or turbulence, eliminating false switching due to choppy conditions. All switches are normally open (NO) for pump down applications.

CSA certified.

Includes: pipe mounting clamp.

Tech Specs:
  • Cable: 30'L w/ 230V Plug; flexible 16 AWG, 2-conductor SJOOW, water-resistant CPE sheath
  • Electrical rating: 13A @ 115/230 VAC, 50/60 Hz
  • Actuation angle: approximately 45° above and 45° below horizontal
  • Switch element: SPST mechanical, snap action; Float material: polypropylene
  • Operating conditions: 200°F max; Dimensions: 3.18"Dia x 5.58"L

Product Information

Item number
13048
Brand Name
SJE Rhombus
Catalog Page
835
Net weight
3
Condition
New

SJE Rhombus® HiTempMaster™ NO Float Switch w/ 240V Piggyback Plug, 30' Cable

Item number
13048
Brand Name
SJE Rhombus
Catalog Page
835
Net weight
3
Condition
New
Price $140.95
price per each
excl. tax
Call for availability
each
Need Help? Call 800-548-1234
Product Details
  • Mechanically activated snap-action contacts—no mercury
  • Specifically designed to handle process temperatures up to 200°F
  • Features piggyback plugs

Use these pump-duty wide-angle float switches for high-temperature sump applications up to 200°F. Their corrosion-resistant float housing with innovative twin-wall design protects internal components from heat and moisture. Switches are not sensitive to rotation or turbulence, eliminating false switching due to choppy conditions. All switches are normally open (NO) for pump down applications.

CSA certified.

Includes: pipe mounting clamp.

Tech Specs:
  • Cable: 30'L w/ 230V Plug; flexible 16 AWG, 2-conductor SJOOW, water-resistant CPE sheath
  • Electrical rating: 13A @ 115/230 VAC, 50/60 Hz
  • Actuation angle: approximately 45° above and 45° below horizontal
  • Switch element: SPST mechanical, snap action; Float material: polypropylene
  • Operating conditions: 200°F max; Dimensions: 3.18"Dia x 5.58"L
